An industrial dust collector draws dust-laden air away from a process, moves it through ductwork to a collector, and separates the dust from the airflow. In dry filter-based systems, the collected particles are typically discharged into a hopper or receptacle, while filtered air leaves the collector or may be recirculated where the application allows.
While the exact design varies between industrial dust collection systems, most follow the same basic stages of capturing, conveying, separating and collecting dust.
What is the Working Principle of a Dust Collector?
A dust collector works by creating a controlled airflow that carries dust from the source to the collection unit. A fan or blower drives this airflow through the system, while the collector separates particles before discharging or recirculating the filtered air.
Here is the step-by-step process.
1. Dust Is Captured at the Source
Industrial dust collection starts as close as possible to the process producing the dust.
A hood, enclosure or extraction point captures airborne particles before they can spread further through the facility. The position and design of this capture point affect how much air the system must move and how effectively it can collect dust.
2. Dust-Laden Air Moves Through the Ductwork
A fan or blower generates the airflow needed to draw contaminated air into the system and transport it towards the dust collector.
Ductwork connects the collection points to the collector. Its diameter, length, number of bends and airflow all influence system resistance and whether particles remain suspended while travelling through the duct.
3. Dust Enters the Collector
The contaminated airstream then enters the dust collector, where the separation process begins.
The exact mechanism depends on the type of collector. In filter-based collectors, air is directed towards filter bags or cartridges. Other systems may use centrifugal force or liquid to separate particulate matter from the air.
4. Dust Is Separated From the Air
In a baghouse or cartridge collector, dust-laden air passes through filter media that captures particles while allowing cleaned air to continue through the system.
As more dust collects on the filter surface, a layer gradually forms and increases airflow resistance. The accumulated dust must therefore be removed periodically so the collector can maintain the required airflow.
5. The Filters Are Cleaned
As dust builds up on the filter surface, airflow resistance increases and the differential pressure across the filters rises. To prevent this build-up from restricting airflow, the collector periodically removes the accumulated dust.
Depending on the system, this may be done through pulse-jet cleaning, reverse-air cleaning or mechanical shaking. In a pulse-jet collector, for example, short bursts of compressed air dislodge dust from the filter surface, allowing it to fall into the hopper below.
The cleaning cycle may run continuously, at set intervals or when the differential pressure reaches a specified level, depending on the collector design and control system.
6. Collected Dust Is Discharged
Dust removed from the filters falls into a hopper below the collection chamber.
From there, it may enter a drum, bin or another discharge system such as a rotary valve or screw conveyor. The hopper is intended to transfer collected material onwards rather than act as long-term dust storage, as excessive accumulation can interfere with collector performance.
7. Filtered Air Leaves the System
Once the particles have been removed, the filtered air reaches the clean side of the collector.
It may then be exhausted outside or, where the process, filtration level and applicable requirements permit, returned to the facility. This completes the dust collection cycle.

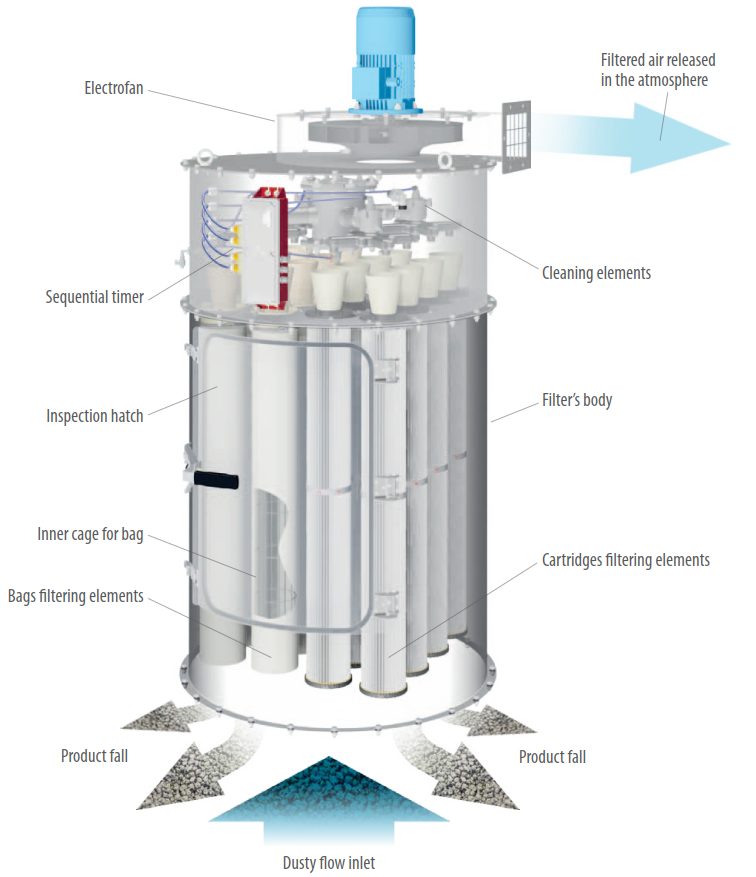

How Does an Industrial Dust Filter Work?
An industrial dust filter separates fine particles from an airstream by passing the air through porous filter media. Particles are retained through filtration mechanisms such as sieving, interception, impaction and diffusion, while the air continues through the media.
|
Filter feature |
How it works |
| Filter media | Provides a porous barrier that allows air to pass while capturing particles of different sizes. |
| Cartridge filters | Use pleated filter media, providing a larger filtration surface area within a compact filter. |
| Baghouse filters | Use fabric filter bags through which the dust-laden airstream is filtered. |
| Dust cake | Captured particles accumulate on the filter surface and can form a dust layer that helps capture more particles. |
| Pressure drop | As dust accumulates, resistance across the filter increases. The cleaning stage removes accumulated material to help maintain the required airflow. |
The type of filter media, its surface area and the characteristics of the dust therefore influence how effectively particles are removed from the airstream.

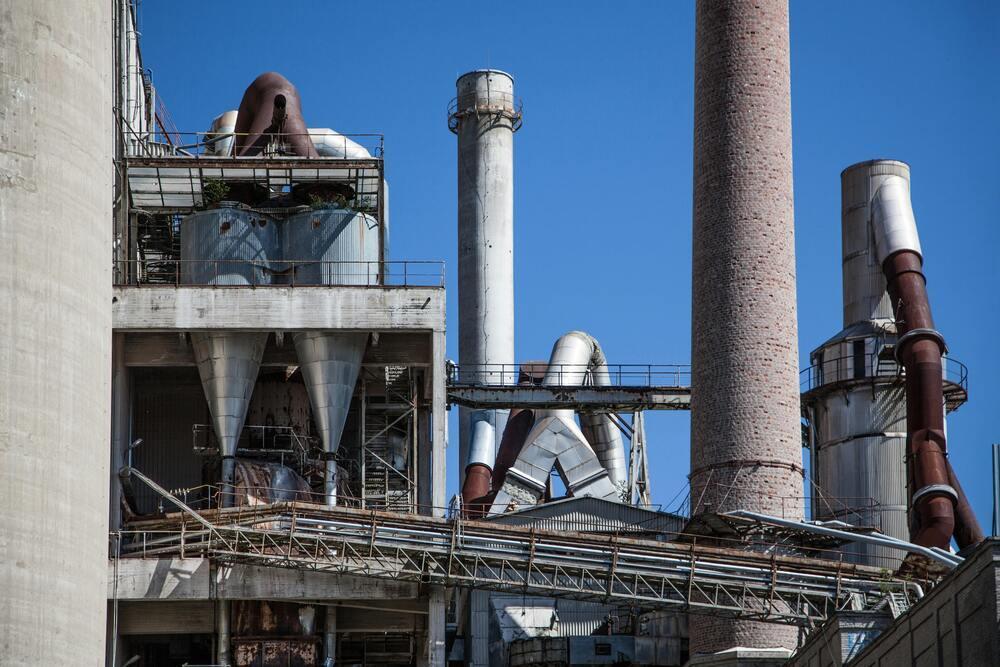

What Are the Main Components of an Industrial Dust Collector?
Although industrial dust collection systems vary in design, several components commonly work together:
|
Component |
Function |
| Capture Hood or Inlet | Collects dust-laden air near the source. |
| Ductwork | This network of pipes acts as the critical pathway, transporting contaminated air from single or multiple source points to the central collector. |
| Industrial Fans and Blowers | Generates the powerful airflow and suction needed to move contaminated air. |
| Dust Filters | Performs the critical task of physically trapping dust particles while allowing clean air to pass through. |
| Filter Cleaning System | These industrial systems utilise technologies such as pulse-jet or reverse-air blasts to periodically dislodge accumulated dust. |
| Hopper | Receives dust after it has been separated or cleaned from the filters. |
| Discharge Device | Transfers collected dust out of the collector. |
| Clean-air Outlet | Directs filtered air away from the collector. |
These components’ performance is interconnected. For example, clogged filters increase resistance, while leaks or blockages in the ductwork can alter airflow at the collection point.
Do All Industrial Dust Collectors Work the Same Way?
No. Industrial dust collectors all remove particulate matter from an airstream, but the separation method varies by collector type. Some use filter media, while others rely on centrifugal force or liquid to remove dust.
|
Dust collector type |
How it separates dust |
| Cartridge collector | Passes dust-laden air through pleated filter cartridges that capture particles on the filter media. |
| Baghouse collector | Uses fabric filter bags to capture particles as air passes through the filter media. It is commonly used for higher dust loads and airflow volumes. |
| Cyclone collector | Uses centrifugal action to separate particles from the airstream and may be used as a pre-separation stage before finer filtration. |
| Wet scrubber | Brings contaminated air into contact with liquid droplets that capture particulate matter before the droplets are separated from the airstream. |
The appropriate dust collection method depends on the material being handled, particle characteristics, dust loading, process conditions and overall system requirements.
How to Maintain a Dust Collector For Better Suction?
Because a dust collector depends on maintaining sufficient airflow through the system, changes in filter resistance, duct conditions or discharge performance can affect suction at the collection point. A noticeable loss of suction can indicate that the system is no longer maintaining its intended airflow.
Key maintenance checks include:
- Monitor differential pressure: A rising pressure drop across the filters can indicate increasing resistance, which may restrict airflow and reduce dust capture at the source.
- Check the filter-cleaning system: In pulse-jet collectors, compressed-air pressure, valves and controls must operate correctly to remove accumulated dust from the filters.
- Empty the hopper and check discharge equipment: Excessive material accumulation can interfere with dust discharge and affect collector performance.
- Inspect the ductwork: Blockages, material build-up, damaged sections or air leaks can alter airflow through the system.
- Assess filter condition using operating data: A dusty-looking filter does not necessarily require replacement. Differential pressure, airflow performance and the equipment manufacturer’s recommended limits provide more useful indicators of filter condition.
Maintenance requirements and inspection intervals vary by collector design, dust characteristics and operating conditions. Follow the equipment manufacturer’s specifications rather than applying the same maintenance schedule to every dust collection system.
Customising Dust Collection for Your Facility
Standard solutions are rarely sufficient for the unique demands of modern processing facilities. This is why understanding how an industrial dust collector works is the first step toward implementing a solution tailored to your specific needs. The most effective systems are customised for particular processes and are often integrated with existing pneumatic conveying equipment.
At Pneu Powders Systems, we specialise in the design and supply of these bespoke systems. With years of experience serving clients across ASEAN, from small and medium-sized enterprises (SMEs) to multinational corporations, we provide comprehensive, end-to-end food manufacturing solutions. Our approach ensures uncompromised quality at a fair price, with every design personally reviewed by our director to guarantee a professional touch.
Partner with us to develop a dust collection system that meets your facility’s precise hygiene, safety, and operational goals.
